型 号 Model | M-H-5L-DCSS-H | ||
密炼腔容积 Mixing Cylinder Cubage( L) | 5L | ||
挤出螺杆直径 Diameter of Extrusion Screws( φ)(mm) | Φ45 | ||
混炼电机功率 Mixing Motor Power ( KW) | 7.5KW | ||
混炼变频调速功率 Mixing Inverter Control Power ( KW) | 7.5KW | ||
挤出电机功率 Extrusion Motor Power ( KW) | 2.2KW | ||
挤出变频调速功率 Extrusion Inverter Control Power ( KW) | 2.2KW | ||
切粒电机功率 Dicing Motor Power ( KW) | 0.75KW | ||
切粒变频调速功率 Dicing Inverter Control Power ( KW) | 0.75KW | ||
加热功率 Heating Power ( KW) | 6KW | ||
温控区数 Temperature Control Interval No. | 四区 | ||
电器控制 Electric Control | 智能温控表 Intelligent Temperature-controlled Table + PLC编程+触摸屏控制 Touch Screen Control | ||
**切粒转速 Max Rotating Speed of Dicing | 180r/min | ||
出料小孔径 Small bore Discharging | Φ3.5 | ||
切刀吹气冷却 Slicer Cooling | 电磁气阀自动控制 Automatically Control by Solenoid Valve | ||
全机重量 Total Weight | 约1.4吨 about 1.4 Ton | ||
安装尺寸（米） Size of Installation( M) (长X宽X高) ( L x W x H) | 2.1×1.2 ×2.4 | ||

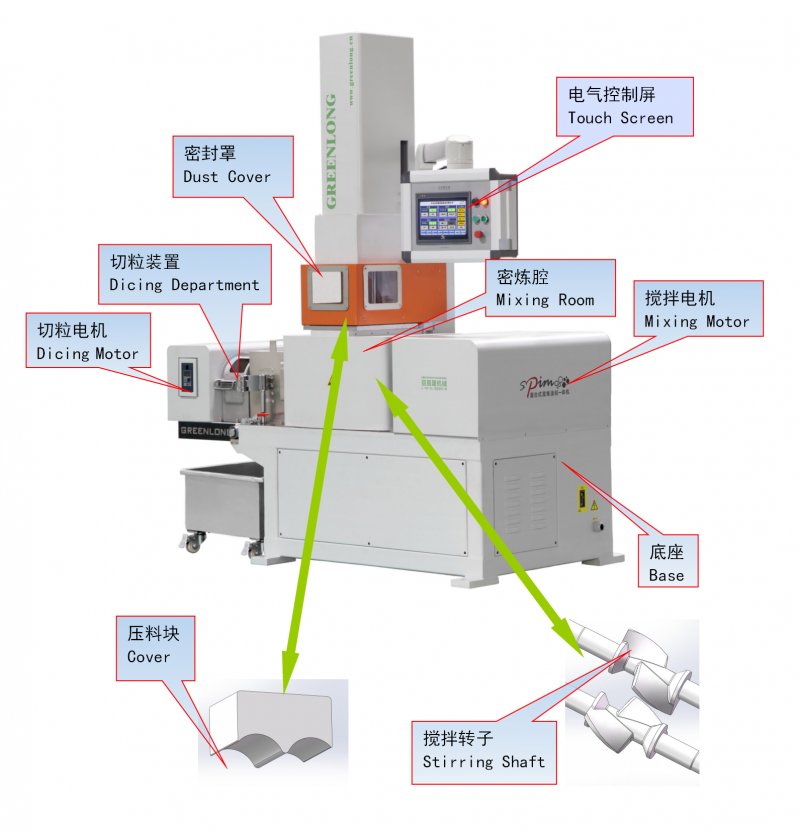

主要零配件明细
Main Part List
序号NO: | 名称Name | 规格型号Model | 单位Unit | 数量Qua | 制造商Maker |
1 | 密炼腔Mixing Room | 5L | 件Pics | 1 | 亘易隆GREENLONG |
2 | 搅拌转子Mixing Shaft | 5L | 套Set | 1 | 亘易隆GREENLONG |
3 | 挤出螺杆Extrusion Screw | Φ45 | 件Pics | 1 | 亘易隆GREENLONG |
4 | 模头法兰Extrusion Nozzle | / | 件Pics | 1 | 亘易隆GREENLONG |
5 | 混炼电机Mixing Motor | 7.5KW | 台Set | 1 | 瑞德森/国茂REDSUN/GuoMao |
6 | 挤出电机Extrusion Motor | 2.2KW | 台Set | 1 | 瑞德森/国茂REDSUN/GuoMao |
7 | 切粒电机Dicing Motor | 0.75KW | 台Set | 1 | 瑞德森/国茂REDSUN/GuoMao |
8 | 密封罩Dust Cover | / | 件Pics | 1 | 亘易隆GREENLONG |
9 | 压料块Cover | / | 件Pics | 1 | 亘易隆GREENLONG |
10 | 料斗Feeder | / | 件Pics | 1 | 亘易隆GREENLONG |
本机特点：Special good points
◆ 混炼造粒**组合，中间无需搬料
This machine integrates mixing and granulation into the whole, and no need to transfer the resin.
◆ 粒料长短可控、光滑度可控
we can adjust the resin's length and Smoothness.
◆ 智能温控，自动化程度高
Intelligent Temperature-controlled, High degree of automation
◆ 工作效率更高，性能更稳定
Higher efficiency and more stable performance
◆ 手动、自动可自由转换
Manual, automatic, freely convertible
◆ 伺服控制，易清理
Servo control, easy to clean
◆ 带粉尘回收和废气排放装置
Dust recovery and exhaust gas emission device
◆ 螺杆和料筒耐磨和抗腐蚀
The screw and barrel are wear resistant and resistant to corrosion
◆ 大推力螺杆设计，输送速度快
Large thrust screw design, fast delivery speed
◆ 体积小，占地面积少
Small size, small footprint
◆ 功耗小，耗电少
Low power consumption and less power consumption
